weld seam grinding 90°
Materials
Use the Inox angle grinder, the adhesive backing pad hard and the ceramic Velcro pad grain 120 to remove the weld.
Note:
Guide the machine horizontally in the direction of the arrow.
Recommended speed: ca 3.000 rpm
The back up pad should have an angle of 10-15 ° to the workpiece to avoid circular grinding marks. This also increases the removal rate and service life of the abrasive.
Make sure the tool is evenly guided along the weld. Staying on one spot leads to bumps.
Remove the grinding marks with the medium backing pad and the Trizact velcro disc A100 (220 grit).
Note:
Guide the machine vertically in the direction of the arrow.
Recommended speed: ca 2.100 rpm
Reduce the surface roughness with the medium backing pad and the Trizact velcro disc A45 (grit 400).
Note:
Guide the machine horizontally in the direction of the arrow.
Recommended speed: ca 2.100 rpm
Mount the MB 650 SV satin finishing attachment on the angle grinder
With the folded ring orange, adjust the grinding pattern.
Note:
Recommended speed: approx. 2,100 rpm

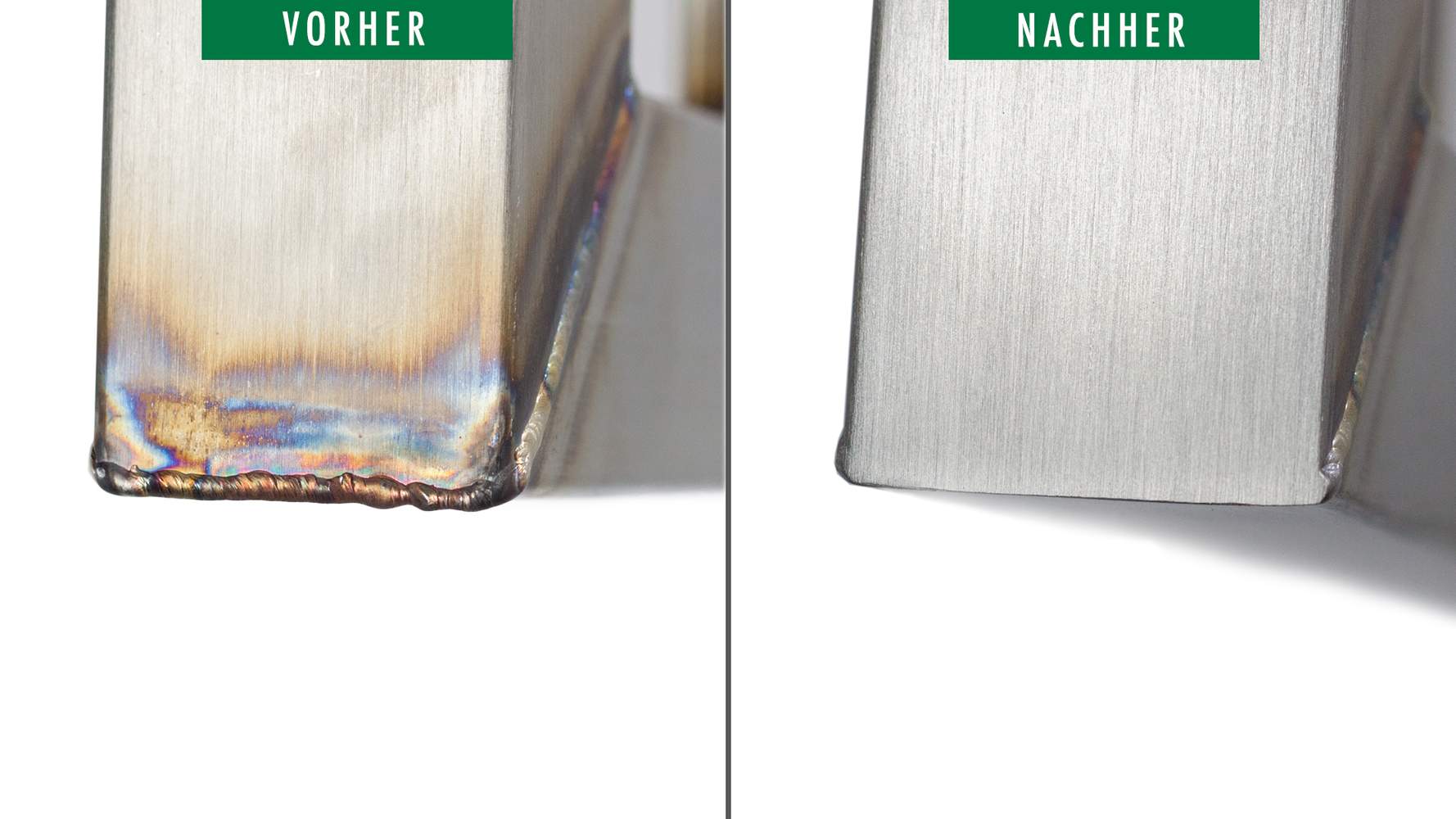

Finished corner seam with grinding pattern.
