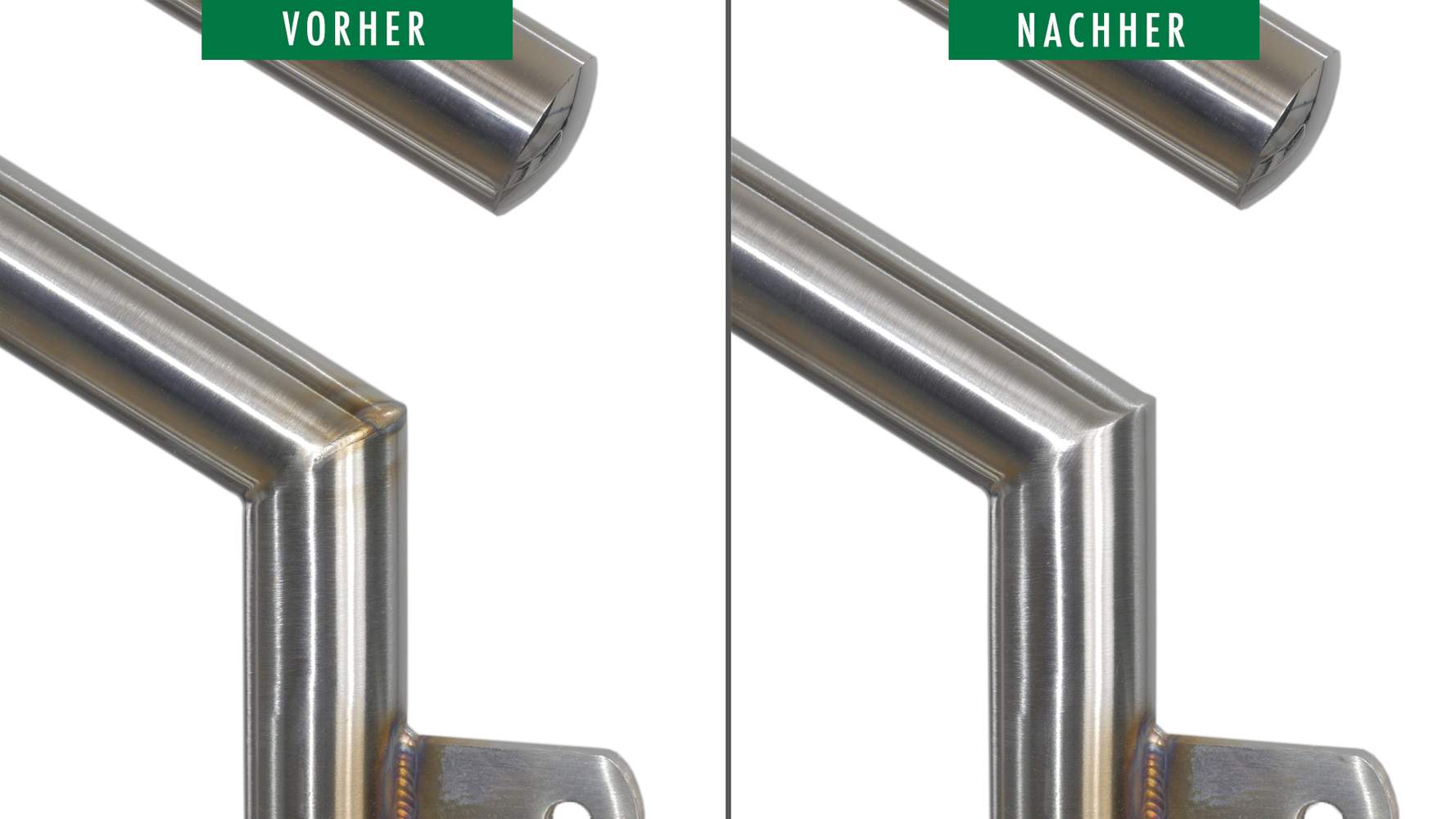

weld seam grinding 60° - mounted handrail
Materials

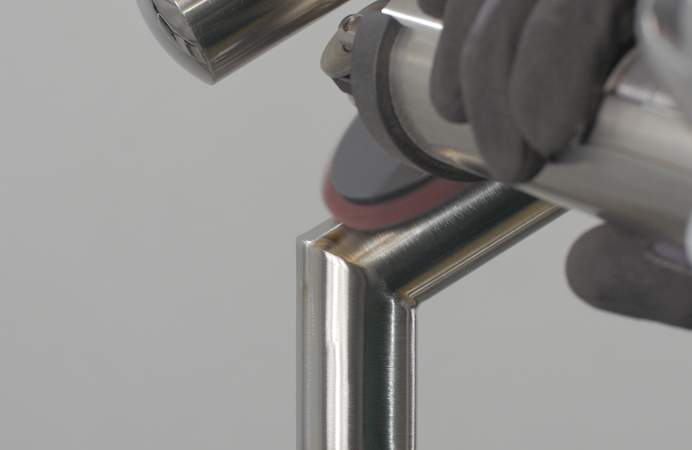

Use the MultiGrinder attachment and the non-woven combi disc to remove the weld on the upper part of the workpiece.
Hinweis:
Recommended speed: 3.000 rpm
Thanks to the low height of the MultiGrinder head, it is also possible to work between the handrail and the handrail belt.
Guide the machine vertically in the direction of the arrow.
The angle grinder should have an angle of 10-15 ° to the workpiece in order to increase the removal rate and service life of the grinding tool.

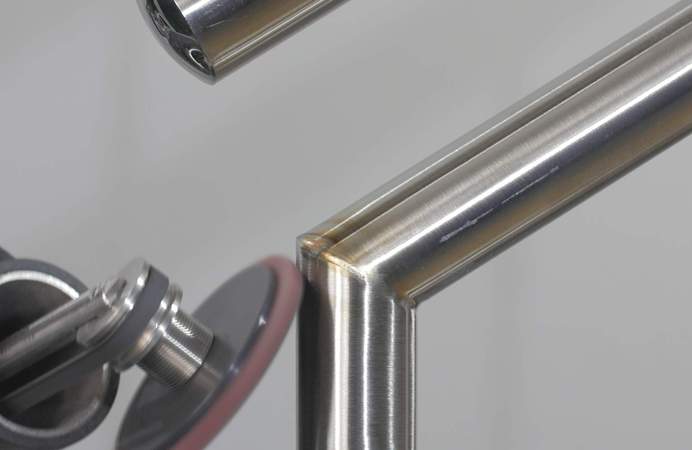

Repeat the previous procedure for the lower part of the workpiece.
Note:
Guide the machine vertically in the direction of the arrow.
The angle grinder should have an angle of 10-15 ° to the workpiece in order to increase the removal rate and service life of the grinding tool.
Recommended speed: ca 3.000 rpm

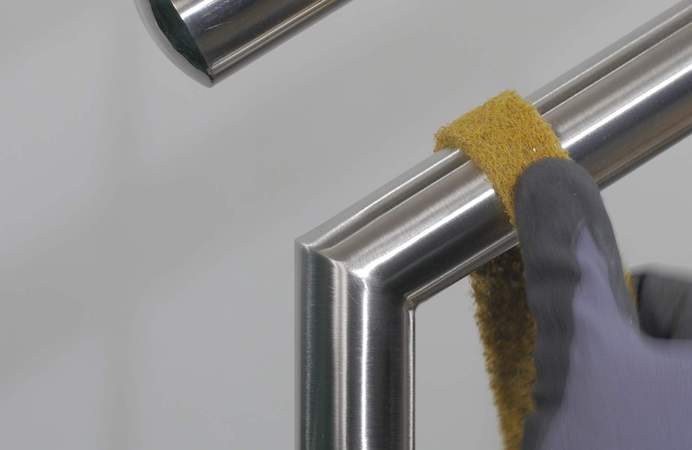

With the non-woven strip GB 220, adjust the grinding pattern.

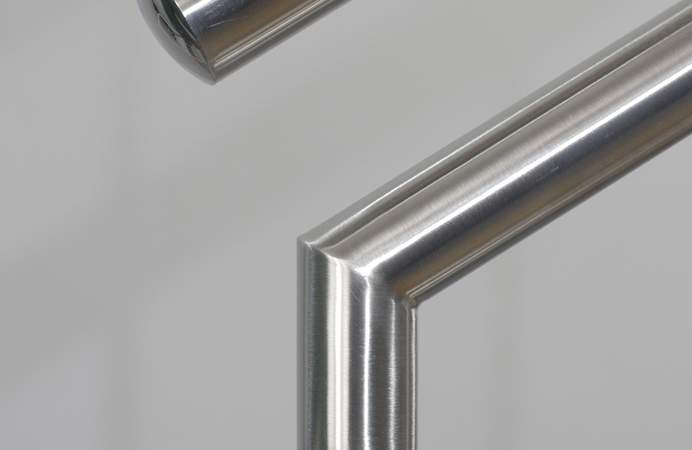

Finish.
